Key Features
- Compact modular X-ray fluorescence spectrometer for elemental analysis of elements from Na to Am
- Small and light, 220 × 230 × 275 mm and 6 kg, for easy movement to the measuring point
- Modular design: the sampler can be replaced with a protective casing to measure non-standard samples
- Sample can be placed both above and below the measuring system
- X-ray optics geometry significantly reduces the influence of the distance to the detector and levels sample unevenness without distorting the results
- Safety interlock for sample changing and measurement
- Options: helium unit, integrated video camera, integrated batteries, car on-board power supply, sample rotation module and an autosampler for 6 samples
- Applications: cement, minerals and ores, geology, biology, forensics and mining

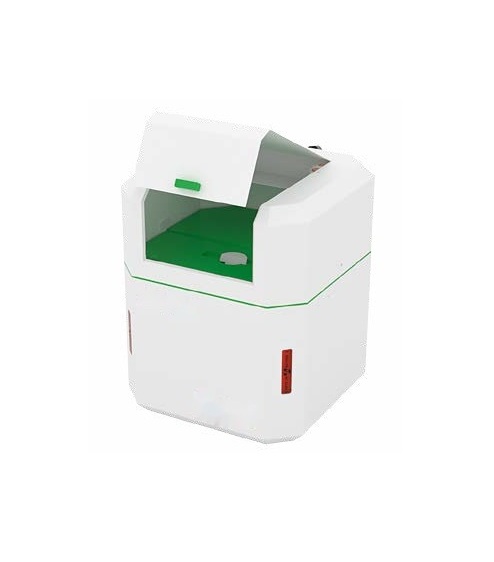

About the XRF-9710 PEARL Compact Bulk EDXRF Spectrometer
The XRF-9710 PEARL is a compact modular X-ray fluorescence spectrometer for elemental analysis. It is a bulk EDXRF instrument with an SDD detector (resolution < 127 eV) and a 10 W or 4 W X-ray tube, covering the elements Na to Am, and Multiflo Instruments supplies it for cement, minerals and ores, geology, biology, forensics and mining. It is the compact, more economical of the two bulk EDXRF models.
The modular design makes it possible to replace the sampler with a protective casing, which allows non-standard samples to be measured. The compact design and ergonomic features of the spectrometer allow the sample to be placed both above and below the measuring system, and the small size and light weight (220 × 230 × 275 mm, 6 kg) enable easy movement to the measuring point.
The X-ray optics is designed so that the influence of the distance from the object under investigation to the detector is significantly reduced, and the unevenness of the sample is leveled without distorting the measurement results. The design features and a safety interlock enhance security during sample changing and measurement.
Light elements are analyzed under helium, and primary X-ray filtration and collimation (0.5 to 10 mm) are set manually. Additional options are a helium unit, an integrated video camera for a close-up view of the sample, integrated batteries, power from the car on-board power supply, a sample rotation module and an autosampler for 6 samples. The larger XRF-9700 STARFISH is the universal, higher-specification of the two bulk EDXRF models; they are compared below.
XRF-9710 PEARL specifications
| Model | XRF-9710 PEARL |
|---|---|
| Type | Compact modular X-ray fluorescence spectrometer (bulk EDXRF) for elemental analysis |
| Applications | Cement, minerals and ores, geology, biology, forensics and mining |
| Range of defined elements | Na to Am (atomic number 11 to 95) |
| X-ray tube | 10 or 4 W (end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling |
| Detector | SDD, resolution < 127 eV, carbon shield |
| Light elements analysis | Helium |
| Autosampler, samples quantity | Up to 6 |
| Primary X-ray filtration | Manual |
| Primary X-ray collimation | Manual, from 0.5 to 10 mm |
| Sample rotation | Available |
| Oversized samples measurement | Up to 170 × 170 × 60 mm |
| Dimensions | 220 × 230 × 275 mm |
| Weight | 6 kg |
| Modular design | The sampler can be replaced with a protective casing to measure non-standard samples |
| Sample placement | Above or below the measuring system |
| X-ray optics geometry | Significantly reduces the influence of the distance from the sample to the detector and levels the unevenness of the sample without distorting the measurement results |
| Safety | Safety interlock during sample changing and measurement |
| Additional options | Helium unit; integrated video camera for a close-up view of the sample; integrated batteries; powered by the car on-board power supply; sample rotation module; autosampler for 6 samples |
XRF-9700 STARFISH and XRF-9710 PEARL compared
| Specification | XRF-9700 STARFISH | XRF-9710 PEARL |
|---|---|---|
| Type | Universal benchtop X-ray fluorescence spectrometer | Compact modular X-ray fluorescence spectrometer |
| Range of defined elements | C to Fm (atomic number 6 to 100) | Na to Am (atomic number 11 to 95) |
| X-ray tube | 50 W (side or end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling | 10 or 4 W (end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling |
| Detector | SDD, resolution < 127 eV, carbon shield | SDD, resolution < 127 eV, carbon shield |
| Light elements analysis | Vacuum or helium | Helium |
| Autosampler, samples quantity | Up to 144 | Up to 6 |
| Primary X-ray filtration | 10-position filter wheel | Manual |
| Primary X-ray collimation | Automatic, from 0.5 to 15 mm | Manual, from 0.5 to 10 mm |
| Sample rotation | Available | Available |
| Oversized samples measurement | Up to 400 × 500 × 200 mm | Up to 170 × 170 × 60 mm |
| Dimensions | 650 × 750 × 600 mm | 220 × 230 × 275 mm |
| Weight | 60 kg | 6 kg |
The XRF-9710 PEARL is the compact, more economical model; the XRF-9700 STARFISH is the higher-specification, fully automated model.
Specifications are as published by the manufacturer. Contact us to confirm the configuration for your laboratory.
Compact bulk EDXRF spectrometer: frequently asked questions
What is the XRF-9710 PEARL?
The XRF-9710 PEARL is a compact modular X-ray fluorescence spectrometer (bulk EDXRF), designed for elemental analysis. Its modular design lets the sampler be replaced with a protective casing to measure non-standard samples.
Which applications is the PEARL supplied for?
Multiflo Instruments supplies the XRF-9710 PEARL bulk EDXRF spectrometer for cement, minerals and ores, geology, biology, forensics and mining.
Which elements can the PEARL measure, and with what hardware?
It covers the elements Na to Am (atomic number 11 to 95). It has a 10 W or 4 W end-window X-ray tube with an Rh anode (Mo, Ag, W, Cu, Cr) and an SDD detector with resolution below 127 eV and a carbon shield. Light elements are analyzed under helium.
How compact and easy to move is the PEARL?
It measures 220 × 230 × 275 mm and weighs 6 kg, and its small size and light weight enable easy movement to the measuring point. Options include integrated batteries and power from the car on-board power supply. The sample can be placed both above and below the measuring system.
What options and sample sizes does the PEARL support?
Samples up to 170 × 170 × 60 mm can be measured. Additional options are a helium unit, an integrated video camera for a close-up view of the sample, integrated batteries, power from the car on-board power supply, a sample rotation module and an autosampler for 6 samples. A safety interlock enhances security during sample changing and measurement.
What is the difference between the PEARL and the XRF-9700 STARFISH?
The PEARL is the compact, more economical model: 10 or 4 W tube, Na to Am, helium for light elements, manual filtration and collimation, an autosampler for up to 6 samples and a weight of 6 kg. The STARFISH is the universal, fully automated model: 50 W tube, C to Fm, vacuum or helium, a 10-position filter wheel, automatic collimation, an autosampler for up to 144 samples and a weight of 60 kg. See the comparison table on this page, or contact us for a quotation on either model.
Where can I buy the XRF-9710 PEARL in India?
Multiflo Instruments, based in Navi Mumbai, supplies X-ray fluorescence spectrometers in India. Our team can advise on the XRF-9710 PEARL, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
