Key Features
- Universal benchtop X-ray fluorescence spectrometer for non-destructive elemental analysis, for research projects and industry
- Simultaneous multi-element analysis of all elements from C to Fm in one measurement, from 100 % down to 1 ppm
- Preliminary quantitative results in 5 seconds
- Light elements: liquid and dusty samples are analyzed under helium, solids under vacuum
- 10-position filter wheel changes the primary X-ray filters automatically; collimation is automatic from 0.5 to 15 mm
- Three-axis manipulator and autosampler for up to 144 samples without operator intervention
- Fundamental parameter method: semi-quantitative analysis of unknown samples without reference materials or calibration
- Applications: cement, minerals and ores, geology, biology, forensics and mining

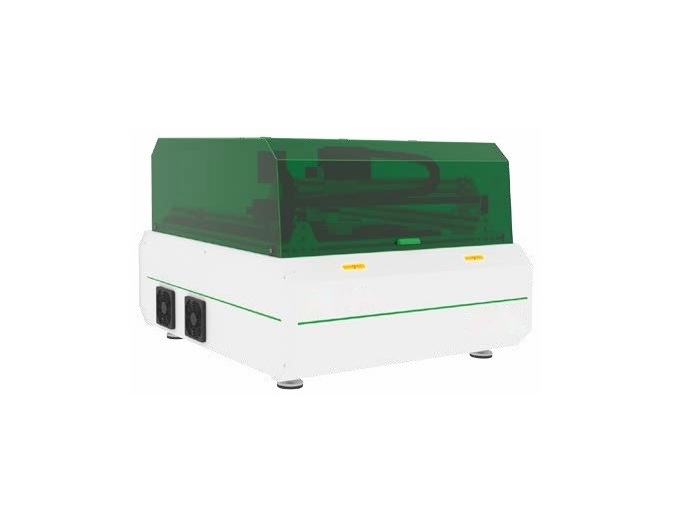

About the XRF-9700 STARFISH Bulk EDXRF Spectrometer
The XRF-9700 STARFISH is a universal benchtop X-ray fluorescence spectrometer that provides non-destructive elemental analysis of various samples. It is a bulk EDXRF instrument with an SDD detector (resolution < 127 eV) that can be used both in research projects and in industry, and Multiflo Instruments supplies it for cement, minerals and ores, geology, biology, forensics and mining.
In just one measurement the spectrometer delivers concentrations for all elements from C to Fm in the range of 100 % down to 1 ppm, and the results of the preliminary quantitative analysis are ready in 5 seconds. For the best performance on light elements, liquid and dusty samples are analyzed under helium, while solids are analyzed under vacuum. With the fundamental parameter method, no reference materials are needed for semi-quantitative analysis, so unknown samples can be analyzed without calibration.
A 50 W X-ray tube with air cooling is combined with a 10-position filter wheel that installs one of the primary X-ray filters automatically to mitigate the impact of matrix elements and the background components, and with automatic collimation from 0.5 to 15 mm. A three-axis manipulator analyzes up to 144 samples without operator intervention, the qualitative results are displayed automatically on the spectrum, and serial samples are quantified according to previously saved techniques. A video camera with additional illumination controls the precision of sample positioning.
Spectrum processing includes filtration, normalization, subtraction, a spiking test, account of the mutual influence of elements and regression graphic charts. The smaller XRF-9710 PEARL is the compact, more economical of the two bulk EDXRF models; they are compared below.
XRF-9700 STARFISH specifications
| Model | XRF-9700 STARFISH |
|---|---|
| Type | Universal benchtop X-ray fluorescence spectrometer (bulk EDXRF) for non-destructive elemental analysis |
| Applications | Cement, minerals and ores, geology, biology, forensics and mining |
| Range of defined elements | C to Fm (atomic number 6 to 100); all elements in one measurement, in the range of 100 % down to 1 ppm |
| X-ray tube | 50 W (side or end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling |
| Detector | SDD, resolution < 127 eV, carbon shield |
| Light elements analysis | Vacuum or helium: liquid and dusty samples under helium, solids under vacuum |
| Autosampler, samples quantity | Up to 144 (three-axis manipulator, no operator intervention) |
| Primary X-ray filtration | 10-position filter wheel; the filter is changed automatically |
| Primary X-ray collimation | Automatic, from 0.5 to 15 mm |
| Sample rotation | Available |
| Oversized samples measurement | Up to 400 × 500 × 200 mm |
| Dimensions | 650 × 750 × 600 mm |
| Weight | 60 kg |
| Quick analysis | Results of the preliminary quantitative analysis are ready in 5 seconds |
| Analysis method | Fundamental parameter method: no reference materials are needed for semi-quantitative analysis |
| Qualitative and quantitative analysis | Qualitative results are displayed automatically on the spectrum; serial samples are quantified according to previously saved techniques |
| Spectrum processing | Filtration, normalization, subtraction, spiking test, account of the mutual influence of elements, regression graphic charts |
| Sample positioning | Controlled via a video camera with additional illumination |
XRF-9700 STARFISH and XRF-9710 PEARL compared
| Specification | XRF-9700 STARFISH | XRF-9710 PEARL |
|---|---|---|
| Type | Universal benchtop X-ray fluorescence spectrometer | Compact modular X-ray fluorescence spectrometer |
| Range of defined elements | C to Fm (atomic number 6 to 100) | Na to Am (atomic number 11 to 95) |
| X-ray tube | 50 W (side or end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling | 10 or 4 W (end window), anode Rh (Mo, Ag, W, Cu, Cr), air cooling |
| Detector | SDD, resolution < 127 eV, carbon shield | SDD, resolution < 127 eV, carbon shield |
| Light elements analysis | Vacuum or helium | Helium |
| Autosampler, samples quantity | Up to 144 | Up to 6 |
| Primary X-ray filtration | 10-position filter wheel | Manual |
| Primary X-ray collimation | Automatic, from 0.5 to 15 mm | Manual, from 0.5 to 10 mm |
| Sample rotation | Available | Available |
| Oversized samples measurement | Up to 400 × 500 × 200 mm | Up to 170 × 170 × 60 mm |
| Dimensions | 650 × 750 × 600 mm | 220 × 230 × 275 mm |
| Weight | 60 kg | 6 kg |
The XRF-9710 PEARL is the compact, more economical model; the XRF-9700 STARFISH is the higher-specification, fully automated model.
Specifications are as published by the manufacturer. Contact us to confirm the configuration for your laboratory.
Bulk EDXRF spectrometer: frequently asked questions
What is the XRF-9700 STARFISH?
The XRF-9700 STARFISH is a universal benchtop X-ray fluorescence spectrometer (bulk EDXRF). It provides non-destructive elemental analysis of various samples and can be used both in research projects and in industry.
Which applications is the STARFISH supplied for?
Multiflo Instruments supplies the XRF-9700 STARFISH bulk EDXRF spectrometer for cement, minerals and ores, geology, biology, forensics and mining.
Which elements and concentration range can it measure?
In just one measurement it delivers concentrations for all elements from C to Fm (atomic number 6 to 100) in the range of 100 % down to 1 ppm. It has a 50 W X-ray tube with an Rh anode (Mo, Ag, W, Cu, Cr) and an SDD detector with resolution below 127 eV and a carbon shield.
How does the STARFISH analyze light elements?
For the best performance on light elements, liquid and dusty samples are analyzed under helium, while solids are analyzed under vacuum.
How many samples can the STARFISH analyze without an operator?
The three-axis manipulator can analyze up to 144 samples without operator intervention. A 10-position filter wheel changes the primary X-ray filter automatically, collimation is automatic from 0.5 to 15 mm, and a video camera with additional illumination controls the precision of sample positioning.
Does the STARFISH need reference materials?
Not for semi-quantitative analysis. With the fundamental parameter method no reference materials are needed, so unknown samples can be analyzed without calibration. Preliminary quantitative results are ready in 5 seconds, and serial samples are quantified according to previously saved techniques.
What is the difference between the STARFISH and the XRF-9710 PEARL?
The STARFISH is the universal, fully automated model: 50 W tube, C to Fm, vacuum or helium for light elements, a 10-position filter wheel, automatic collimation, an autosampler for up to 144 samples and a weight of 60 kg. The PEARL is the compact, more economical model: 10 or 4 W tube, Na to Am, helium, manual filtration and collimation, an autosampler for up to 6 samples and a weight of 6 kg. See the comparison table on this page, or contact us for a quotation on either model.
Where can I buy the XRF-9700 STARFISH in India?
Multiflo Instruments, based in Navi Mumbai, supplies X-ray fluorescence spectrometers in India. Our team can advise on the XRF-9700 STARFISH, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
