Key Features
- Evaluates the heat transfer properties of clothing material used for protective clothing against heat and flames, to EN ISO 12127-1
- A heating cylinder held at the contact temperature (100–500 °C) is brought into contact with the sample
- The sample sits on a calorimeter that moves at constant speed toward the heating cylinder; linear travel is 90 mm
- The calorimeter records a temperature curve, from which the threshold time is determined
- Device control and data recording by laptop with pre-installed software; electrical calorimeter travel
- Heating cylinder with type K mantle thermocouple, silver alloy puncheon and ERSA Type 201 heating element, insulated with heat resistant wool

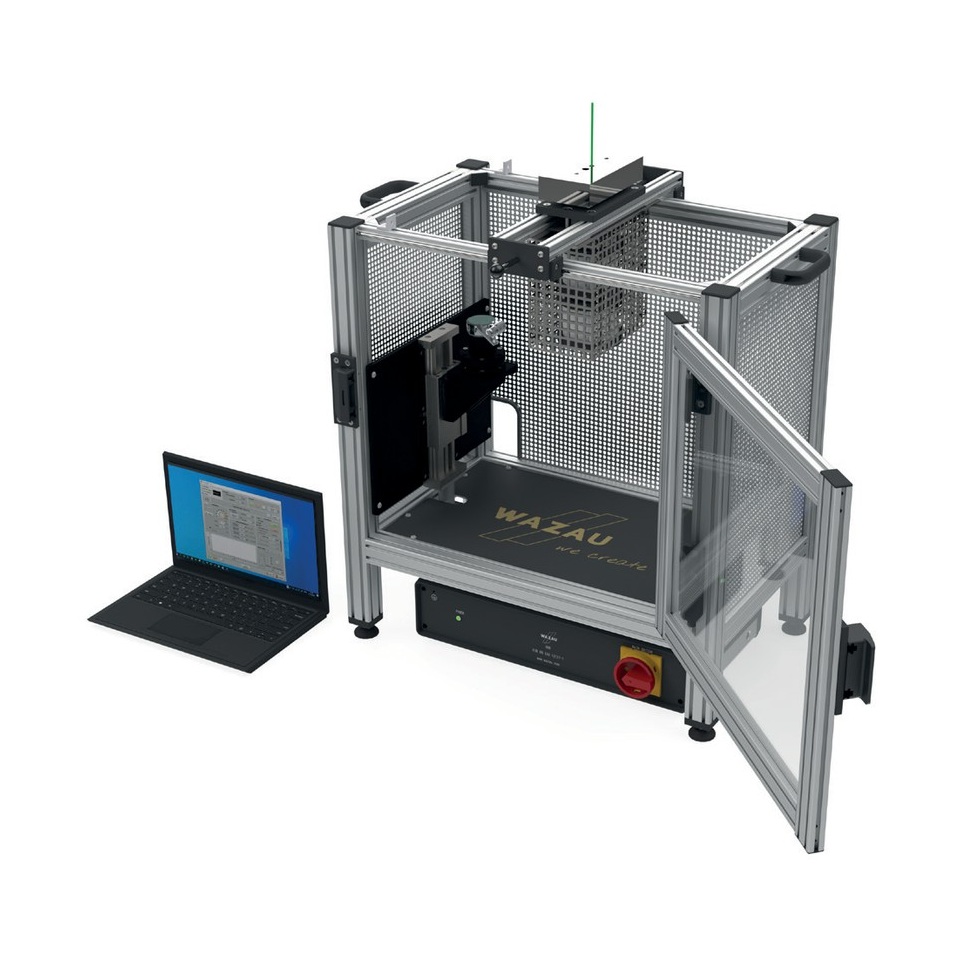

- Rack with housing, glazed door and hinge switch
- 230 VAC 50/60 Hz, 300 VA; approx. 50 kg
About the Wazau CHD Contact Heat Device
The CHD from Wazau (Dr.-Ing. Georg Wazau Mess- + Prüfsysteme GmbH, Berlin, Germany) is a contact heat device. It enables the evaluation of the heat transfer properties of clothing material used for protective clothing for protection against heat and flames, to EN ISO 12127-1.
In this test method a heating cylinder is brought into contact with a sample of the clothing material to be tested. The heating cylinder is heated to the respective contact temperature and maintained at this temperature. A sample of the material is placed on the calorimeter, and the calorimeter together with the sample is moved at a constant speed towards the heating cylinder. A temperature curve is recorded by the calorimeter, and the threshold time is determined from this curve.
The device is controlled and its data recorded by a laptop with pre-installed software for DIN EN ISO 12127-1. The calorimeter travel is electrical, with a linear spindle drive, and the contact temperature range is 100 to 500 °C.
Wazau CHD specifications
| Model | CHD, contact heat device |
|---|---|
| Manufacturer | Wazau, Germany (Dr.-Ing. Georg Wazau Mess- + Prüfsysteme GmbH, Berlin) |
| Standard | EN ISO 12127-1 |
| Scope | Evaluation of heat transfer properties of clothing material used for protective clothing against heat and flames |
| Contact temperature | 100–500 °C |
| Calorimeter | With type K thermocouple and linear spindle drive; electrical travel |
| Travel of linear unit | 90 mm |
| Result | Threshold time, determined from the temperature curve recorded by the calorimeter |
| Control and recording | Laptop; USB interface with multifunction data acquisition module |
| Software | DIN EN ISO 12127-1, MCC-DAQ, MS Windows 10 (pre-installed on the laptop) |
| Rack (W × D × H) | 620 × 752 × 410 mm |
| Control unit (W × D × H) | 471 × 108 × 271 mm |
| Weight | Approx. 50 kg |
| Electrical supply | 230 VAC 50/60 Hz, 300 VA |
Components
| Rack | Rack with housing, glazed door and hinge switch |
|---|---|
| Heating cylinder | Including housing, with type K mantle thermocouple; puncheon made of silver alloy; ERSA Type 201 heating element; heat insulation with heat resistant wool; linear guide with add-on weight |
| Calorimeter | With type K thermocouple and linear spindle drive |
| Control unit | With power supplies and power controller for the heating cylinder |
| Data acquisition | USB interface with multifunction data acquisition module |
| Laptop and software | Laptop with pre-installed software DIN EN ISO 12127-1, MCC-DAQ, MS Windows 10 |
| Documentation | Operating manual, English |
Dimensions are as published by Wazau. Products are constantly being further developed, so the actual dimensions may vary.
Specifications are as published by the manufacturer, Wazau. Download the product brochure or contact us to confirm the configuration for your laboratory.
Contact heat device: frequently asked questions
Which standard does the Wazau CHD follow?
EN ISO 12127-1, the evaluation of the heat transfer properties of clothing material used for protective clothing against heat and flames. The pre-installed software is for DIN EN ISO 12127-1.
How does the test work?
A heating cylinder is heated to the contact temperature and held there. A sample on the calorimeter is moved at constant speed towards the heating cylinder. The calorimeter records a temperature curve, and the threshold time is determined from it.
What contact temperatures are possible?
The contact temperature range is 100 to 500 °C. The travel of the linear unit is 90 mm.
How is the device controlled?
By a laptop with pre-installed software (DIN EN ISO 12127-1, MCC-DAQ, MS Windows 10), through a USB interface with a multifunction data acquisition module. The calorimeter travel is electrical.
What is supplied with the CHD?
A rack with housing, glazed door and hinge switch; the heating cylinder with its housing, thermocouple, silver alloy puncheon, heating element, insulation and linear guide; the calorimeter with linear spindle drive; the control unit; the data acquisition module; a laptop with software; and an English operating manual.
What are the installation requirements?
A 230 VAC 50/60 Hz supply of 300 VA. The rack measures 620 × 752 × 410 mm (W × D × H), the control unit 471 × 108 × 271 mm, and the weight is approx. 50 kg. Dimensions may vary as the product is further developed.
Where can I buy the Wazau CHD contact heat device in India?
Multiflo Instruments, based in Navi Mumbai, supplies Wazau testing instruments in India. Our team can advise on the Wazau CHD contact heat device, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
