Key Features
- ETSP-RT series simulate rain and water spray as per JIS D 0203, SAE J2245 and SAE J575, covering shower spray, jet spray and car wash tests
- Shower spray (S1, S2 heavy splash/shower): 40 nozzles at 14.2 psi (1 kgf/cm²) for 30 minutes, with a water flow rate of 6.5 gallons/min (24.5 L/min)
- Light spray (R1, R2 rain): two nozzles at 4.3 psi (0.3 kgf/cm²) for 10 minutes, with a water flow rate of 0.8 gallons/min (3.2 L/min)
- Jet spray test: table rotation 4 RPM, water flow rate 100 L/min (6,000 L/hr = 6 m³/hr)
- Car wash spray test: table rotation 5 RPM, pressure 80–100 kg/cm²
- Four models, ETSP-RT 512, 729, 1000 and 3000, with useful capacity from 512 to 2,197 litres
- Water circulation system, rotating table and LED timer, with optional heating up to 80 °C ± 5 °C

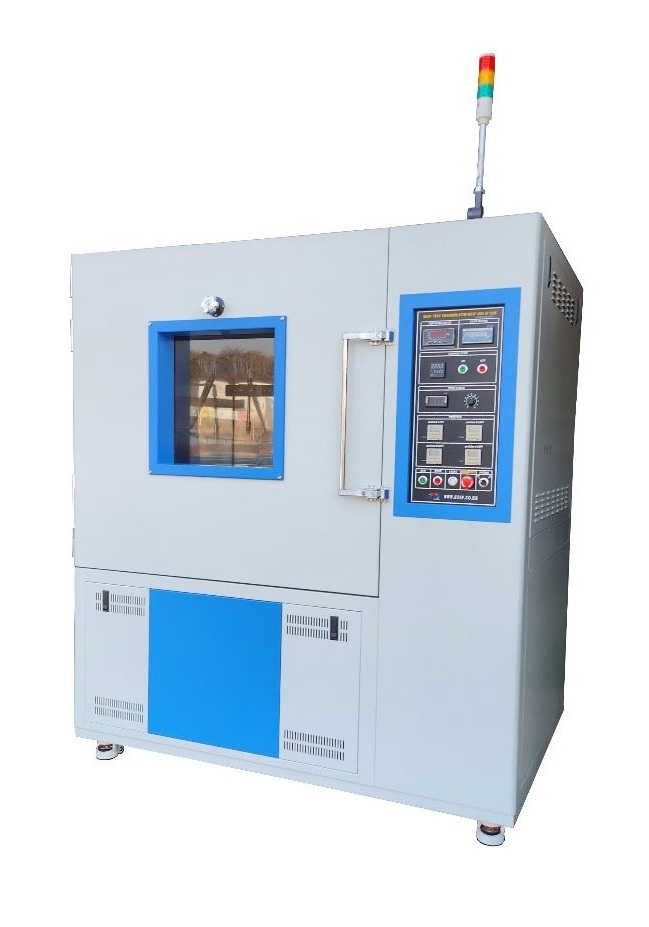

About the ETSP-RT Series Rain Test Chamber
The ETSP-RT series from ETSP, South Korea, are rain test chambers designed for the simulation of rain and water spray as per JIS D 0203, SAE J2245 and SAE J575. The series covers shower spray, jet spray and car wash tests.
The shower spray nozzles follow the JIS standard for S1, S2, R1 and R2 testing. Heavy splash/shower (S1, S2 spray) uses 40 nozzles at 14.2 psi (1 kgf/cm²) for 30 minutes, with a water flow rate of 6.5 gallons/min (24.5 L/min). Light spray/rain (R1, R2 spray) uses two nozzles at 4.3 psi (0.3 kgf/cm²) for 10 minutes, with a water flow rate of 0.8 gallons/min (3.2 L/min).
In the jet spray test the table rotates at 4 RPM with a water flow rate of 100 L/min (6,000 L/hr = 6 m³/hr), and in the car wash spray test the table rotates at 5 RPM with a pressure of 80–100 kg/cm². The chambers have an ergonomically designed control panel, a control and monitoring system, a water circulation system and a rotating table, with optional heating up to 80 °C ± 5 °C.
Four models, ETSP-RT 512, 729, 1000 and 3000, offer useful capacity from 512 to 2,197 litres, and custom-designed chambers are available on demand. The ETSP-RT series is manufactured according to Total Quality procedures, in compliance with the ISO 9001 standard.
ETSP-RT series specifications
| Model | ETSP-RT series: ETSP-RT 512, 729, 1000 and 3000 |
|---|---|
| Manufacturer | ETSP, South Korea (ETSP Co., Ltd.) |
| Type | Rain test chamber (shower spray test, jet spray test, car wash test) |
| Standards | Simulation of rain and water spray as per JIS D 0203, SAE J2245 and SAE J575 |
| Shower spray test (S1, S2) | Heavy splash/shower: 40 nozzles at 14.2 psi (1 kgf/cm²) for 30 minutes; water flow rate 6.5 gallons/min (24.5 L/min) |
| Light spray test (R1, R2) | Light spray/rain: two nozzles at 4.3 psi (0.3 kgf/cm²) for 10 minutes; water flow rate 0.8 gallons/min (3.2 L/min) |
| Jet spray test | Table rotation 4 RPM; water flow rate 100 L/min = 6,000 L/hr = 6 m³/hr |
| Car wash spray test | Table rotation 5 RPM; pressure 80–100 kg/cm² |
| Shower spray nozzles | As per JIS standard (S1, S2, R1, R2 testing) |
| Heating | Up to 80 °C ± 5 °C (optional) |
| Features | Ergonomically designed, elegantly finished control panel; control and monitoring system; water circulation system; rotating table |
| Timer | LED timer |
| Safety devices | Leakage breaker, circuit breaker, overheat protector, emergency shut-off switch |
| Included accessories | Viewing window (reinforced) and interior light, three color tower light, caster for moving, upper limit temperature (over heat protector), hard copy and soft copy instruction and maintenance manual |
Models and dimensions
| Model | Internal dimensions (W × D × H) | External dimensions (W × D × H) | Useful capacity |
|---|---|---|---|
| ETSP-RT 512 | 800 × 800 × 800 mm | 1,370 × 1,245 × 1,860 mm | 512 litres |
| ETSP-RT 729 | 900 × 900 × 900 mm | 1,470 × 1,345 × 1,960 mm | 729 litres |
| ETSP-RT 1000 | 1,000 × 1,000 × 1,000 mm | 1,570 × 1,445 × 2,060 mm | 1,000 litres |
| ETSP-RT 3000 | 1,300 × 1,300 × 1,300 mm | 1,870 × 1,745 × 2,260 mm | 2,197 litres |
Custom-designed chambers are available on demand.
Specifications are as published by the manufacturer, ETSP. Download the product brochure or contact us to confirm the configuration for your laboratory.
Rain test chamber: frequently asked questions
What does the ETSP-RT rain test chamber test?
The ETSP-RT series are designed for the simulation of rain and water spray as per JIS D 0203, SAE J2245 and SAE J575, and cover shower spray, jet spray and car wash tests.
What are the shower spray (S1, S2) and light spray (R1, R2) conditions?
The shower spray nozzles follow the JIS standard for S1, S2, R1 and R2 testing. Heavy splash/shower (S1, S2 spray) uses 40 nozzles at 14.2 psi (1 kgf/cm²) for 30 minutes, with a water flow rate of 6.5 gallons/min (24.5 L/min). Light spray/rain (R1, R2 spray) uses two nozzles at 4.3 psi (0.3 kgf/cm²) for 10 minutes, with a water flow rate of 0.8 gallons/min (3.2 L/min).
What are the jet spray and car wash test conditions?
The jet spray test runs with the table rotating at 4 RPM and a water flow rate of 100 L/min (6,000 L/hr = 6 m³/hr). The car wash spray test runs with the table rotating at 5 RPM and a pressure of 80–100 kg/cm².
Which models and capacities are available?
There are four models: ETSP-RT 512 (512 litres), ETSP-RT 729 (729 litres), ETSP-RT 1000 (1,000 litres) and ETSP-RT 3000 (2,197 litres). Custom-designed chambers are available on demand.
What features and accessories does the ETSP-RT include?
The chambers have an ergonomically designed control panel, a control and monitoring system, a water circulation system, a rotating table and an LED timer, with optional heating up to 80 °C ± 5 °C. Included are a reinforced viewing window and interior light, a three color tower light, casters for moving, an over heat protector and an instruction and maintenance manual. A brochure is available from the button at the top of this page.
Where can I buy the ETSP-RT rain test chamber in India?
Multiflo Instruments, based in Navi Mumbai, supplies ETSP environmental test chambers in India. Our team can advise on the ETSP-RT rain test chamber, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
