Key Features
- Measures the gross heat of combustion (PCS) of building materials to EN ISO 1716 and the gross calorific value (GCV) of coal and coke to ISO 1928, ASTM D5865 and IS 1350 (Part 2)
- One platform for fire-reaction testing of building products and fuel quality control of coal and coke; the method is selected in the software
- Constant-volume oxygen combustion in a sealed bomb immersed in a stirred water bucket, with an isoperibol water jacket
- Bucket and jacket temperatures are measured separately with precision probes
- 7-inch touchscreen PLC/HMI; PC software for method selection, temperature curves, evaluation and reports is included
- Calibrated with certified benzoic acid; corrections for heat exchange, ignition, combustion aids and acid / sulfur
- Results in MJ/kg; net calorific value and moisture-basis conversions from additional analysis inputs
- Manual bomb loading with a separate external oxygen filling station; one-year warranty

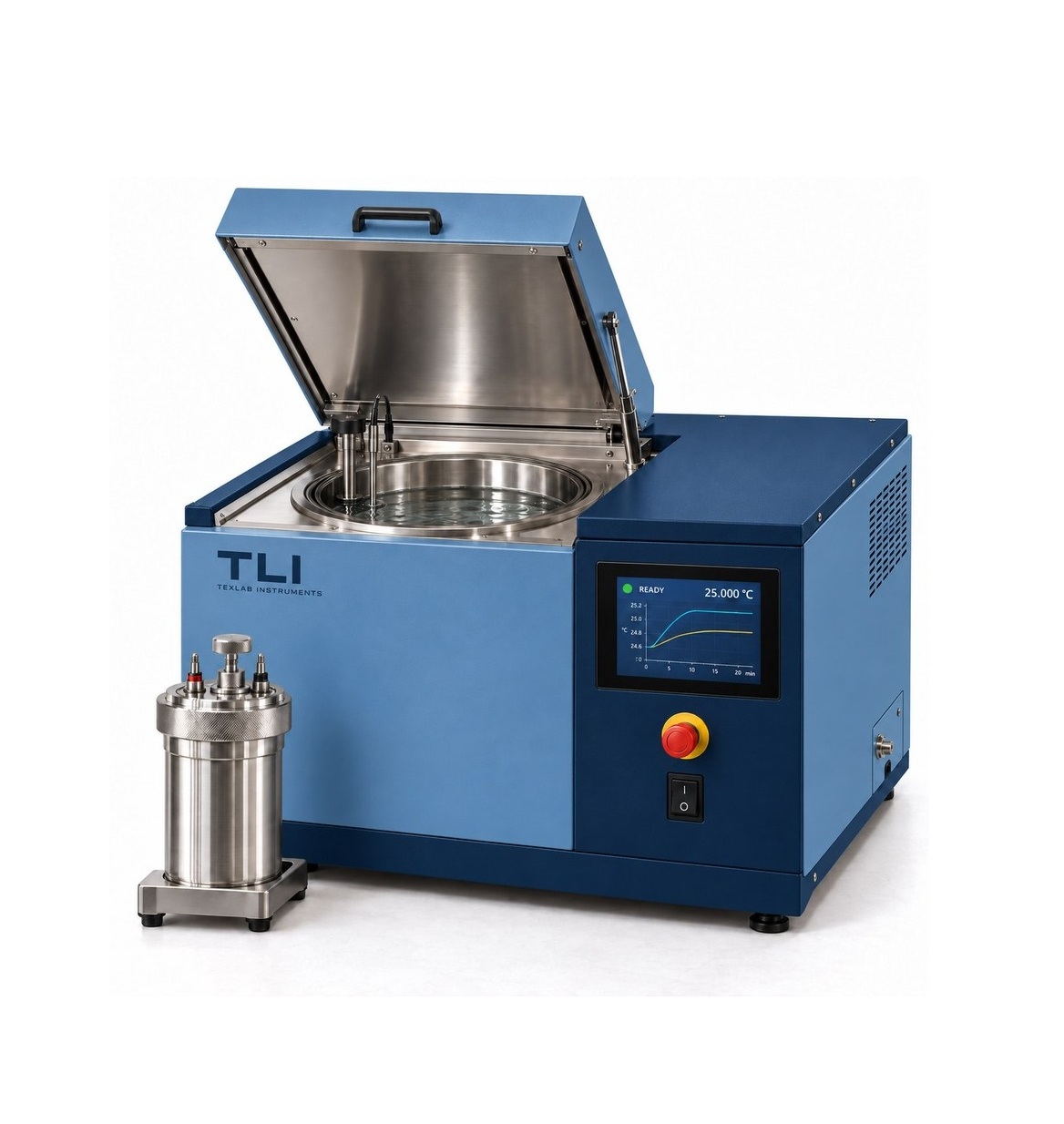

About the TLI TXL-YAN-014 Oxygen Bomb Calorimeter
The TXL-YAN-014 is an oxygen bomb calorimeter from TexLab Instruments (TLI), Istanbul, Turkey. It measures the gross heat of combustion (PCS) of building materials to EN ISO 1716 and the gross calorific value (GCV) of coal and coke to ISO 1928, ASTM D5865 and IS 1350 (Part 2). One platform covers fire-reaction testing of building products and fuel quality control of coal and coke; the method is selected in the software.
The sample burns in oxygen at constant volume inside a sealed bomb immersed in a stirred water bucket. Bucket and jacket temperatures are measured separately in an isoperibol arrangement, and the result is calculated from the temperature rise, the energy equivalent and the method corrections. Typical materials are building materials, fiberglass membranes, binders and coatings for material development and quality control, and coal and coke for fuel quality control.
The instrument has a 7-inch touchscreen PLC/HMI, and PC software for method selection, temperature curves, evaluation and reports is included. It is calibrated with certified benzoic acid; the energy equivalent is specific to the configuration. Net calorific value and moisture-basis conversions are calculated from the required additional analysis inputs, and low-energy samples use method-specific combustion aids and corrections.
TLI TXL-YAN-014 specifications
| Model | TXL-YAN-014, oxygen bomb calorimeter |
|---|---|
| Manufacturer | TexLab Instruments (TLI), Istanbul, Turkey |
| Test methods | EN ISO 1716:2018; ISO 1928:2025; ASTM D5865/D5865M-19; IS 1350 (Part 2):2022 |
| Measurement system | Constant-volume oxygen combustion; isoperibol water jacket |
| Reported quantities | PCS / GCV in MJ/kg; NCV and moisture-basis conversions from additional analysis inputs |
| Temperature measurement | Separate precision measurement of bucket and jacket temperatures |
| Combustion vessel | Sealed oxygen bomb with crucible and electrical ignition |
| Calibration | Certified benzoic acid; configuration-specific energy equivalent |
| Method corrections | Heat exchange, ignition, combustion aids, acid / sulfur |
| Operator interface | 7-inch touchscreen PLC/HMI |
| PC software (included) | Method selection, temperature curves, evaluation and reports |
| Specimen handling | Manual bomb loading; external oxygen filling station |
| Main assembly | Water jacket, inner bucket and peripheral stirrer; temperature probes and measurement electronics; oxygen bomb, crucible and ignition assembly; 7-inch touchscreen control and PC software |
| Warranty | One (1) year |
Installation data (approximate)
| Electrical supply | Approx. 220–240 V AC, 50/60 Hz, single phase |
|---|---|
| Connected load | Approx. 200–600 W |
| Dimensions (W × D × H) | Approx. 700 × 600 × 650 mm |
| Net / gross weight | Approx. 60–90 kg / 91–138 kg |
| Site requirements | Oxygen to the method, pressure regulator, test water, safe filling area |
Approximate values are engineering estimates for planning; final values are confirmed with the order configuration and packing list. Computer hardware is optional and quoted separately.
Test methods and apparatus requirements
| Standard | Application | Apparatus requirements |
|---|---|---|
| EN ISO 1716:2018 | Building products: reaction to fire (EN 13501-1) | Bomb volume 300 ± 50 mL; lid and seal withstand 21 MPa; initial oxygen pressure up to 3 MPa, oxygen purity ≥ 99.5 %; temperature resolution 0.005 K; firing circuit ≤ 20 V |
| ISO 1928:2020 / 2025 | Coal and coke: gross calorific value | Bomb internal volume 250–350 mL; jacket controlled to ±0.1 K or better; temperature indication resolution 0.001 K |
| ASTM D5865 / D5865M | Coal and coke: gross calorific value | Bomb hydrostatic proof test 20 MPa; jacket temperature within ±0.1 °C (isoperibol); traceable temperature calibration |
| IS 1350 (Part 2):2022 | Coal and coke: calorific value (India) | Adopted from ISO 1928:2020; apparatus requirements as ISO 1928 |
Apparatus requirements are summarised from the standards; always apply the current edition. Bomb volume and pressure values are those of the combustion vessel, not of the complete instrument. The instrument is configured and calibrated for the method selected.
Specifications are as published by the manufacturer, TLI. Download the technical datasheet, the product brochure or contact us to confirm the configuration for your laboratory.
How a test runs
1. Weigh & prepare
Select the method in the software, weigh the sample and prepare the ignition assembly.
2. Charge & load
Fill the bomb at the external oxygen station and place it in the water bucket.
3. Ignite & record
Ignite electrically; bucket and jacket temperatures are recorded.
4. Evaluate & report
Check complete combustion, apply corrections, calculate and report the result.
Accessories & services
| Quoted separately | External thermostatic bath, circulator and cooler; oxygen filling station with a suitable pressure regulator; analytical balance and certified benzoic acid; sample preparation kit, combustion aids and spares |
|---|---|
| Supply and service | One (1) year warranty; installation guidance and operator training; calibration, spare parts and technical service |
| Manufacturer | Built in TLI's own Istanbul workshop; CE marked instruments; ISO 9001 / 14001 / 45001 certified manufacturer (as stated by TLI) |
Other accessories and services are specified in the quotation.
Oxygen bomb calorimeter: frequently asked questions
What does the TLI TXL-YAN-014 measure?
It measures the gross heat of combustion (PCS) of building materials to EN ISO 1716 and the gross calorific value (GCV) of coal and coke to ISO 1928, ASTM D5865 and IS 1350 (Part 2). Results are reported in MJ/kg.
Which standards does the calorimeter cover?
EN ISO 1716:2018 for building products (reaction to fire, EN 13501-1), ISO 1928:2025 and ASTM D5865/D5865M-19 for coal and coke, and IS 1350 (Part 2):2022, the Indian standard adopted from ISO 1928:2020. The method is selected in the software.
How does the measurement work?
The sample burns in oxygen at constant volume inside a sealed bomb immersed in a stirred water bucket. Bucket and jacket temperatures are measured separately in an isoperibol arrangement, and the result is calculated from the temperature rise, the energy equivalent and the method corrections for heat exchange, ignition, combustion aids and acid / sulfur.
How is the instrument calibrated?
With certified benzoic acid. The energy equivalent is specific to the configuration, and the achieved performance is documented by calibration with certified benzoic acid.
What is supplied and which accessories are needed?
The instrument comes with the water jacket, inner bucket and stirrer, temperature probes and measurement electronics, oxygen bomb with crucible and ignition assembly, and the 7-inch touchscreen control with PC software. Accessories and services quoted separately include an external thermostatic bath, circulator and cooler, an oxygen filling station with a suitable pressure regulator, an analytical balance, certified benzoic acid, a sample preparation kit, combustion aids and spares. Computer hardware is optional.
What are the installation requirements?
Approximately 220–240 V AC, 50/60 Hz, single phase, with a connected load of approx. 200–600 W. Dimensions are approx. 700 × 600 × 650 mm (W × D × H) and the weight is approx. 60–90 kg net and 91–138 kg gross. The site needs oxygen to the method, a pressure regulator, test water and a safe filling area. These values are estimates for planning; final values are confirmed with the order configuration and packing list.
What warranty and support come with it?
One year of warranty, installation guidance and operator training, plus calibration, spare parts and technical service.
Where can I buy the TLI oxygen bomb calorimeter in India?
Multiflo Instruments, based in Navi Mumbai, supplies TLI TexLab Instruments in India. Our team can advise on the TXL-YAN-014 oxygen bomb calorimeter, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
