Key Features
- Tests electric cable circuit integrity under fire conditions to IEC 60331 Part 11 (apparatus — fire alone, flame temperature of at least 750°C) and Part 21 (procedures for cables rated up to and including 0.6/1kV)
- Ribbon-type propane burner on a Venturi Mixer structure, 500mm front length, with three rows of cross holes (1.32mm diameter, 3.2mm spacing) for a consistent, repeatable flame
- Twin thermocouples positioned 45mm either side of the burner centre-line hold ignition temperature within 750 ±50°C throughout the test
- Sample support clamps the cable with two 150mm metal support rings roughly 300mm apart, keeping the specimen centred and correctly spaced from the chamber floor and walls
- Manual control-panel mode or automatic computer-software mode, with a KWS 409 (Korea Wire Shipbuilding Industry Cooperative) option and compatibility with a shared Slidac system for IEC 60331-11/12 and BS 6387 testing
About the IEC 60331 Fire Resistance Tester

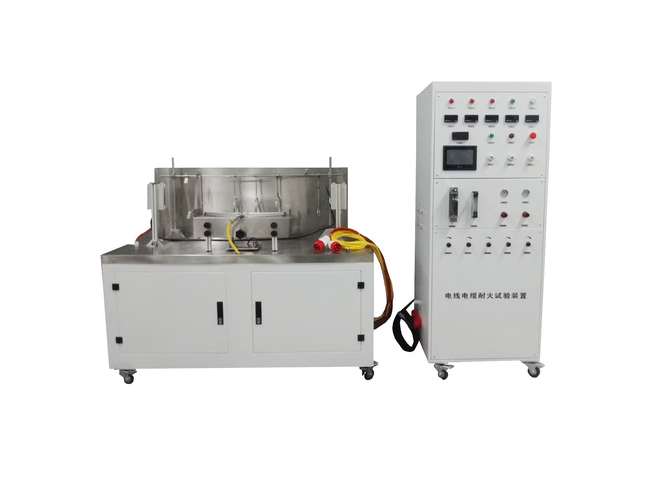

The IEC 60331 Fire Resistance tester (model FT-CFR-818) from FT Solutions Co., Ltd. (FESTEC), South Korea, tests whether an electric cable keeps its circuit integrity while it is in a fire. It covers IEC 60331 Part 11, the apparatus for fire alone at a flame temperature of at least 750 °C, and Part 21, the procedures and requirements for cables rated up to and including 0.6/1 kV.
A ribbon-type propane burner on a Venturi Mixer structure, 500 mm long at the front with three rows of 1.32 mm cross holes at 3.2 mm spacing, gives a consistent, repeatable flame. Twin thermocouples 45 mm either side of the burner centre-line hold the flame at 750 ±50 °C, and the cable is clamped by two 150 mm metal support rings about 300 mm apart. The test can run from the control panel or in automatic computer-software mode, with a KWS 409 option, and the unit can share a Slidac power system with IEC 60331-11/12 and BS 6387 testing.
IEC 60331 Fire Resistance Tester specifications
| Model | FT-CFR-818 |
|---|---|
| Manufacturer | FT Solutions Co., Ltd. (FESTEC), South Korea |
| Size (mm) | 1,600 × 850 × 1,650 (table 600 × 750 × 1,200) |
| Power | AC 380 V, 3-phase, 50/60 Hz, 30 A |
| Weight | 100 kg |
| Flame temperature | 750 ±50 °C (twin thermocouples) |
| Utilities | Propane gas, compressed air, hood, duct and dust collector |
Specifications are as published by the manufacturer, FT Solutions Co., Ltd. (FESTEC). Download the product brochure or contact us to confirm the configuration for your laboratory.
IEC 60331 Fire Resistance Tester: frequently asked questions
What does the IEC 60331 Fire Resistance tester test?
It tests the circuit integrity of electric cables exposed to fire alone, to IEC 60331 Part 11 (apparatus, flame temperature of at least 750 °C) and Part 21 (procedures and requirements for cables rated up to and including 0.6/1 kV).
How is the flame temperature controlled?
Twin thermocouples placed 45 mm either side of the burner centre-line hold the flame within 750 ±50 °C throughout the test. The burner is a ribbon-type propane burner on a Venturi Mixer structure with a 500 mm front length.
Is the FT-CFR-818 also part of the BS 6387 range?
Yes. FT-CFR-818 is also the Category C model in the FESTEC BS 6387 range, and a combined IEC 60331 and BS 6387 order can share one Slidac power supply (up to 1,000 V) to reduce cost. See the BS 6387 Fire Test page for Category C, Z and W.
What are the installation requirements for the FT-CFR-818?
The tester measures 1,600 × 850 × 1,650 mm with a 600 × 750 × 1,200 mm table, and weighs 100 kg. It needs an AC 380 V, 3-phase, 50/60 Hz, 30 A supply, propane gas, compressed air, and hood, duct and dust-collector extraction.
Where can I buy the IEC 60331 Fire Resistance tester (FT-CFR-818) in India?
Multiflo Instruments, based in Navi Mumbai, supplies FT Solutions (FESTEC) test equipment across India. Our team can advise on the FT-CFR-818, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
